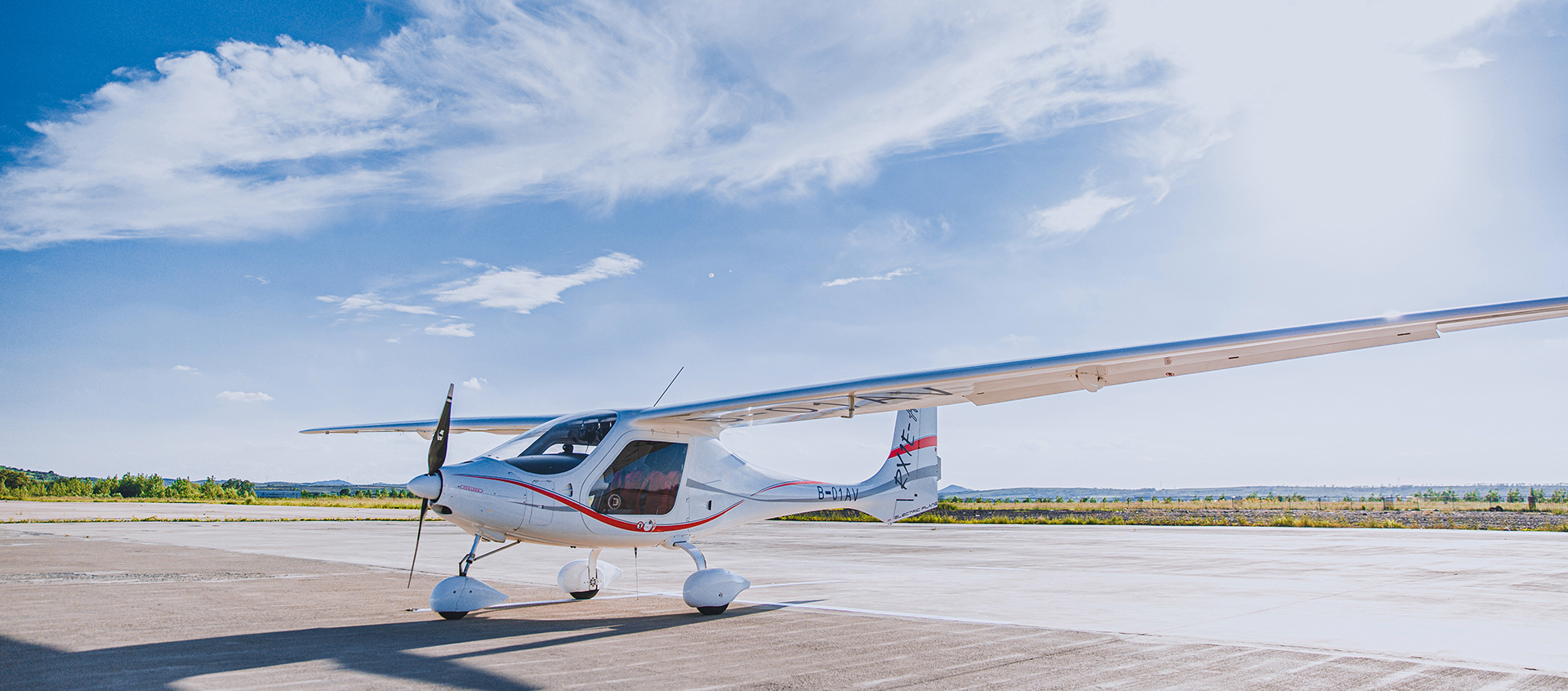

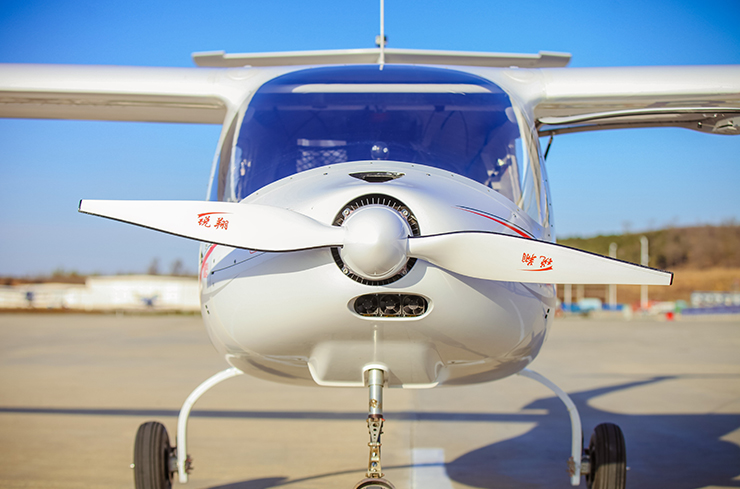

RX1E-A
Product introduction
The RX1E-A two seat electric aircraft made its first successful flight in November 2017. Relying on the technology platform of RX1E two seat electric aircraft, this aircraft has greatly increased the range and endurance of electric light sport aircraft by improving the energy density of lithium battery, improving the performance of electric power system, optimizing the structural design and other technical means, and the endurance capacity has increased from 45 minutes to 2 hours and 30 minutes, meeting the requirements of EU for the endurance capacity of electric light sport aircraft.
Technical
Max take-off weight
630kg
Endurance time
2.5h
Empty weight of aircraft
470kg
Air-range
240km
Maximum speed
180km/h
Stall speed
83km/h
Cruising speed
118km/h
Battery capacity
50kWh
Maximum power
50kw
Take off run distance
281m
Service ceiling
3000m
Landing distance
208m
RX1E-A
Easy to operate and learn
Aircraft system is highly integrated, easy to operate, easy to learn, and suitable for primary training.
Low operating costs
The direct operation cost of aircraft is low, the requirement of infrastructure is not high, and the use and maintenance cost is low.
Good security
The parachute and electric propulsion system of the whole machine are optional, with alarm function and remote fault diagnosis management system, so the whole machine is safe.
The system is simple and reliable

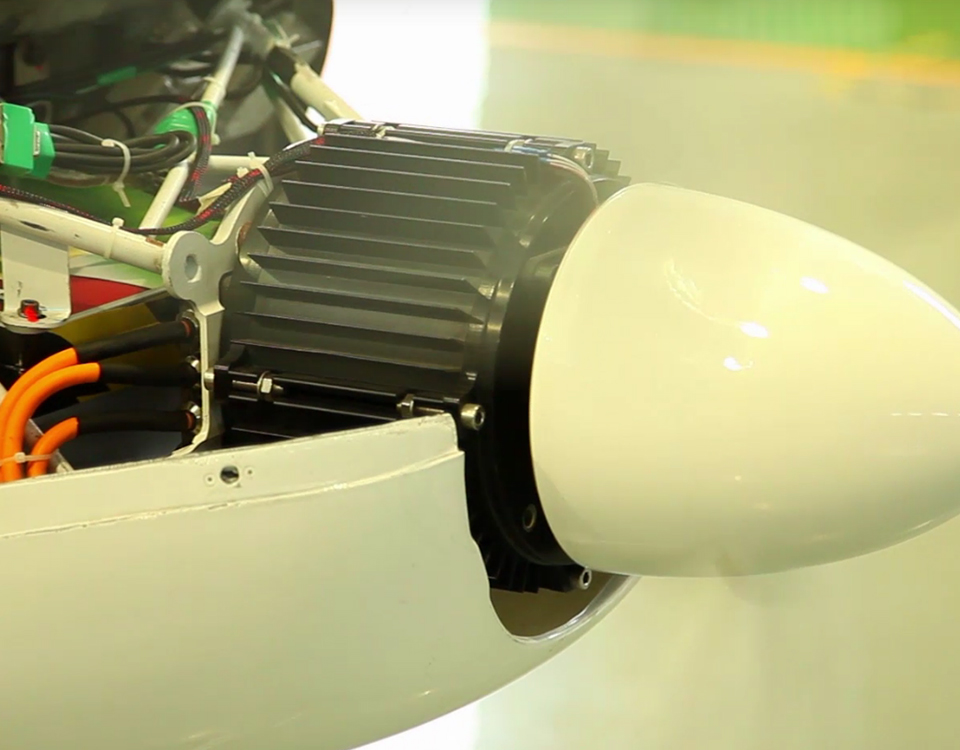

The electric propulsion system is more integrated, simple, reliable and adaptable to the environment.
Excellent performance
High efficiency aerodynamic design, high aspect ratio, good gliding performance and high lift drag ratio.
Environment friendly
The aircraft has no fuel consumption, zero emission, no pollution, stable operation of electric propulsion system, low noise and environmental protection.
