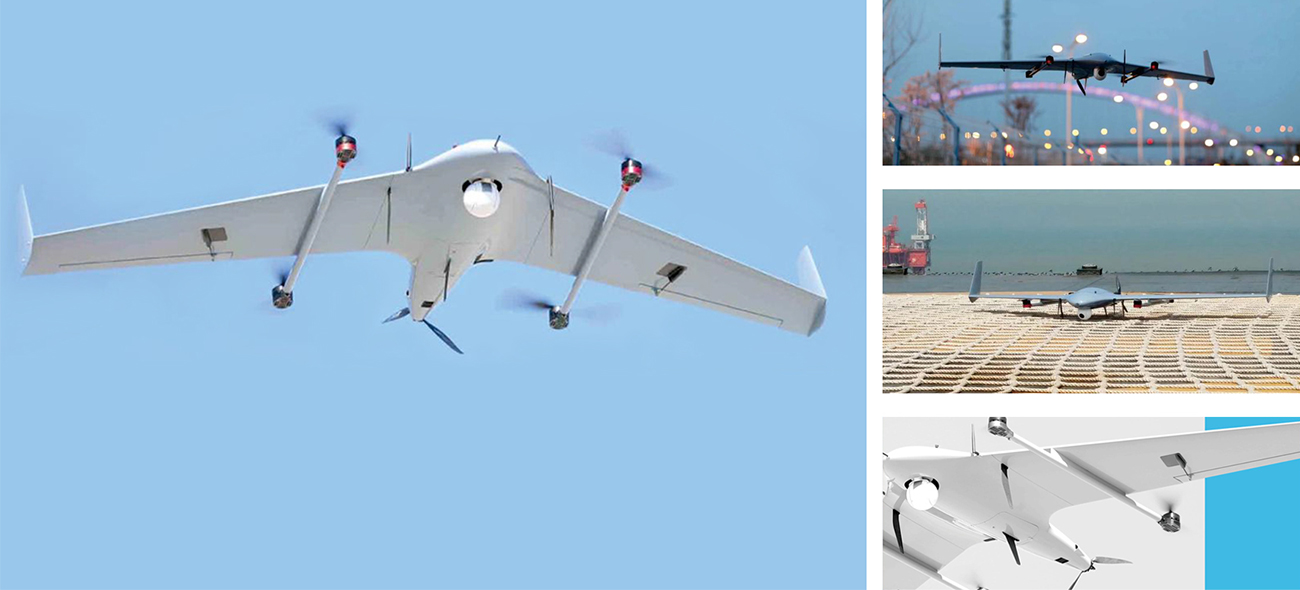

SY-1V VTOL fixed wing electric UAV

SY-1V VTOL Fix Wing Electric UAV realize vertical take-off and landing. It does not require high standard runway and masterly manipulative skill. The distinguishing features of SY-1V lie in long flight duration, high reliability, portability. It can be used in the field of surveying & mapping, patrol, environmental protection.

Technical Parameters

Wing Span	3.4m	Control mode	(RC+auto)
Length	2.1m	Measure & control radius	≥40km
Max take-off weight	22kg	Wind Resistance	≥5Wind scale
Cruising speed	70km/h~120km/h	Rain Resistance	Light Rain
Max vertical speed	4m/s(sea level)	Launch mode	RC+ GPS auto flight
Flight altitude	300m~3000m	Recycling mode	vertical takeoff and landing
Over load	-2g~+3g	System preparation time	＜5min
Endurance	2.5h	System withdrawal time	＜5min
Task Load	Visible Camera/Infrared Camera/Video

SY-2V VTOL fixed wing electric UAV

SY-2V VTOL Fix Wing Electric UAV realize vertical take-off and landing. It does not require high standard runway and masterly manipulative skill. The distinguishing features of SY-2V lie in long flight duration, high reliability, portability. It can be used in the field of surveying & mapping, patrol, environmental protection.

Technical Parameters

Wing Span	2.4m	Flight duration	80min
Length	1.2m	Typical load	0.8kg
Max take-off weight	8.6kg	Payload	1.2KG
Cruising speed	60~85km/h	Launch mode	Vertical take-off
Max Level Speed	100km/h	Recycling mode	Vertical landing
Measure & control radius	>20km	Ambient temperature	- 20℃~+55℃
Flight altitude	100m～1500m	System deployment time	<10min
Ceiling	5500m (altitude)

SY-1200 Multi rotor electric UAV

The SY-1200 drone is a battery-powered multirotor aircrafts designed for security applications in variety of environments and terrains, including police, ports, environment protection and so on.
1. EASY MAINTENANCE
Modular design makes the maintenance incredibly simple and handy. Foldable Propellers improve the level of safety and portability, and allow for installation without the use of any additional tools. Its motor arms fold inward, making the aircraft compact and easy to transport in the trunk of a car. Able to withstand harsh conditions, the SY-1200’s airframe is made of light, yet durable high-strength carbon fiber.
2. EASY USE

The advanced flight controller integrated with the aircraft instantly and precisely responds to pilot inputs. It has one-button takeoff and one-button landing function. It can return automatically when out of control and requires less skill of operators.

Technical Parameters

Diagonalwheelbase	1150mm	Empty weights	9.5kg
Max Speed	65km/h	Maxtake-off weight	15kg
Hovering accuracy	Vertical: ±0.5m Level:±1.5m	Operating Time	30-65 min(depend on load)
Max work height	3000m(Altitude)	Battery	LiPo
Operating Temperature	- 10℃～+40℃	Body material	carbon fiber
Packing box size	560mm480mm550mm	Control mode	RC+auto

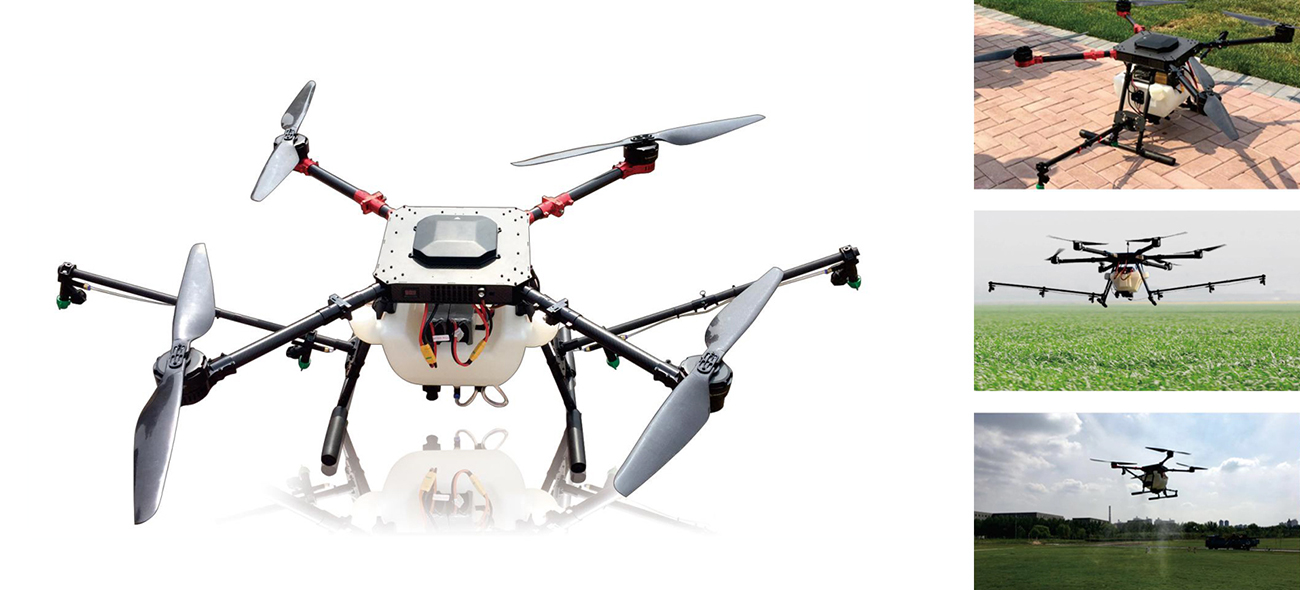

LGAD-P10 Plant protection electric UAV

The LGAD-P series drones are a battery-powered multirotor aircrafts designed for agricultural applications in variety of environments and terrains, including terraces, fields, forests and orchards. They are dust-proof, water-proof (IP43 protection rating) and made of anti-corrosive materials, allowing it to be rinsed clean.
1. EASY MAINTENANCE
Able to withstand harsh conditions, the LGAD-P10 airframe is made of light, yet durable high-strength carbon fiber. Modular design makes maintenance incredibly simple and handy.
2. INTELLIGENT SPRAYING SYSTEM
The intelligent spraying system automatically adjusts its spray according to the flying speed so that an even spray is always applied. This way, the amount of pesticide or fertilizer is precisely regulated to avoid pollution and economize operations.
3. ACCURATE SPRAYING
Spray nozzles can be chosen according to the properties of each liquid to optimize atomization, energy efficiency, and the amount of liquid sprayed. The included nozzles are resistant to wear and can be used for thousands of hours without degradation. I The downward airflow generated by the propellers accelerates the spray, increasing its reach.
4. EASY USE
The advanced flight controller integrated with the aircraft instantly and precisely responds to pilot inputs. The latest intelligent remote control mode allows the spray to pause and resume without missing a spot. The intelligent A to B mode and semi-automatic route planning make sure the LGAD-P10 can work perfectly in irregular shape of fields.

Technical Parameters

Diagonal wheelbase	1200mm	Droplet Size	80~200μm
Flying Speed	0~8m/s	Load Weight	10min
Liquid Tank Volume	10L	Operating Time	10 min
Spray Rate	600~1200m²/min	Battery	LiPo
Spray Height	Above Plant 1~3m	Body material	carbon fiber
Spray Width	4~5m	Flying Height	Above Ground 0~10m
Operating Temperature	- 20℃~+55℃	Control mode	RC+auto

RY-1 Long endurance UAV

RY-1 Long endurance UAVConsisting of higher structural stiffness and lighter structural weight, the fuselage is totally made of carbon fiber and its spacious storage can carry various types of mission loads. It has advantages such as strong cross-wind resistance, flying site adaptability, and some other user-friendly characteristics.
Wide Application Range:
[Aerial Survey]
High-resolution image of interest area is acquired by high-pixel digital camera flying at low altitude quickly. After software processes, it can develop Digital Orthophoto Map (DOM), Digital Elevation Model (DEM), Digital Line Graphic (DLG) and other mapping products.
[Environmental Monitoring]
Carry the visible light digital camera with multi-spectral features which allow the drones can observe air, soil, vegetation and water quality macroscopically; provide decision-making basis for environmental protection, monitor and track the development of sudden environmental pollution events quickly in real time; define the treatment measures in time, and reduce the loss caused by pollution.
RY-1 UAV can also be used in marine environmental monitoring, seismic survey, reef mapping and oil and gas pipeline inspection, and flood disaster investigation.

Technical Parameters

Wing Span	3.4m
Length	2.1m
Max Take-off Weight	22kg
Speed Range	90km/h~110km/h
Max Vertical Speed	4m/s (sea level)
Flight Altitude	300m~3000m
Using Overload Coefficient	-2g~+3g
Endurance	30h
Visuality	(Digital Camera/Infrared Camera/Video)
Control Mode	(RC+auto)
Measure & Control Radius	≤65km
Wind Resistance	6 Wind Scale
Rain Resistance	Light Rain
Launch Mode	(Car assist launch/ Pneumatic catapult)
Landing Mode	(Belly landing/ Net recovery landing)
UAV Assembling/Disassembling Time	＜30min

TH-3 Individual UAV

TH-3 Individual UAV adopts modular design and can realize tool-free quick disassembly and assembly, minimum transportation volume and convenient carrying. The UAV system has real-time video capture and transmission and high-precision geographic information acquisition capabilities.
The airborne flight control system can use GPS navigation control, attitude stability control, task management and other functions. It can flying with real-time guidance, point of interest surround and target coordinate estimation. The drone system adopts modular task load design, which can easily replace task module. Typical mission modules include visible real-time video load, thermal infrared video load, aerometry load, tilt measurement load, etc.

Technical Parameters

Wing Span	1.7m
Length	1.2m
Max Take-off Weight	4kg
Speed Range	65km/h~90km/h
Max Vertical Speed	4m/s(above sea level)
Flight Altitude	300m~5000m(relative)
Using Overload Coefficient	-2g~+3g
Endurance	80min
Visuality	(Digital Camera/Infrared Camera/Video)
Control Mode	(RC+auto)
Measure & Control Radius	≤20km
Wind Resistance	5~6 Wind Scale
Rain Resistance	Light Rain
Launch Mode	Hand Launch
Landing Mode	Auto Landing/Auto Parachute
UAV Assembling/Disassembling Time	＜5min
