RX4E

RX4E is the first four seat electric aircraft model in China and even in the world to apply for airworthiness certification of CCAR-23 normal aircraft, and successfully flew in October 2019. RX4E aircraft adopts the layout of upper single wing, low flat tail, front propeller and front three-point non retractable landing gear.

Get a quote

Product introduction

The aircraft has high efficiency electric propulsion system integration, high lift drag ratio aerodynamic layout design of the whole aircraft, and light, efficient and low-cost composite structure design and manufacturing. It has the characteristics of energy saving, environmental protection, high reliability and low operation cost. It can be used for private license, commercial license pilot training, aviation experience flight, personal entertainment flight, tourism, agriculture and forestry detection, etc.

Technical Parameters

Max take-off weight

1260kg

Endurance time

1.5h

Empty weight of aircraft

952kg

Air-range

300km

Maximum speed

289km/h

Stall speed

100km/h

Cruising speed

220km/h

Battery capacity

50kWh

Maximum power

140kw

Take off run distance

380m

Service ceiling

3000m

Landing distance

400m

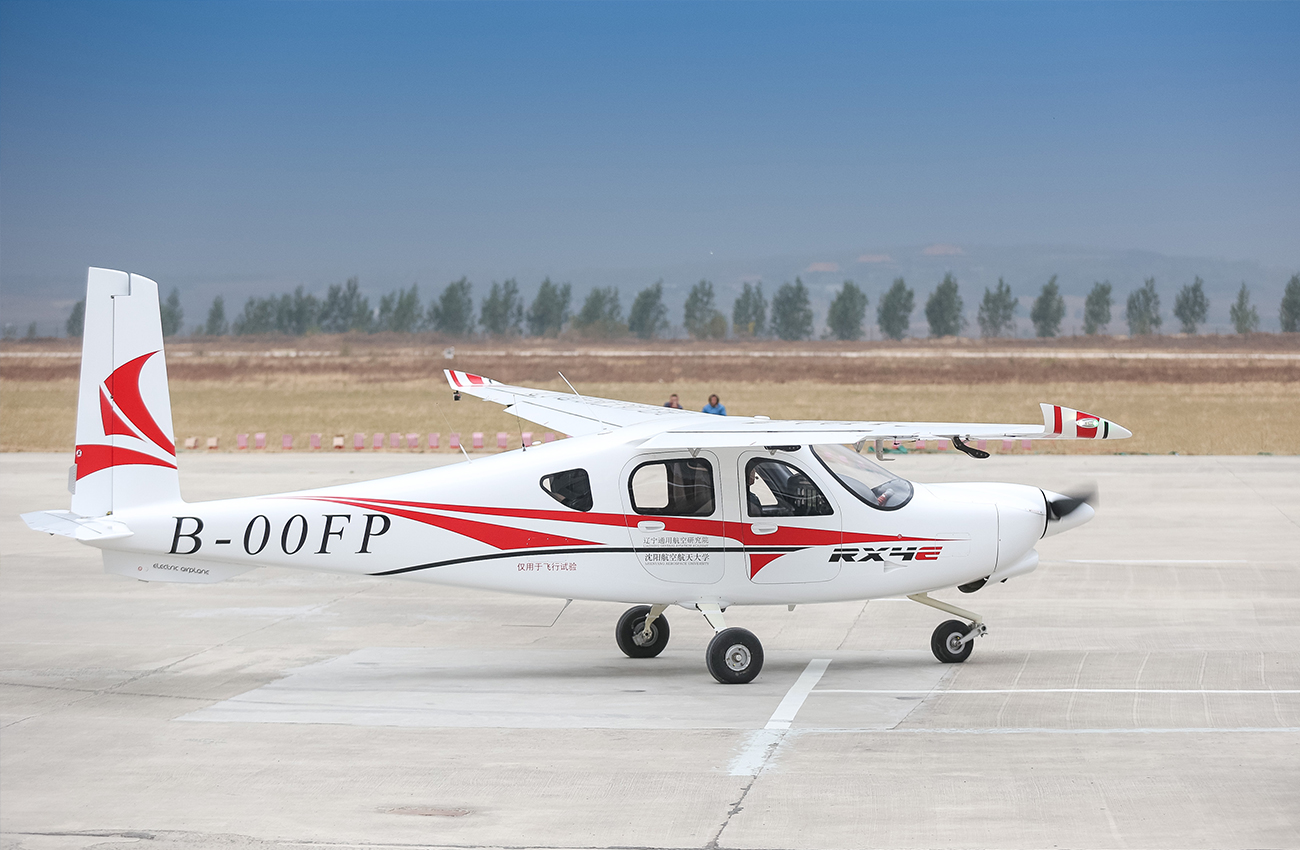

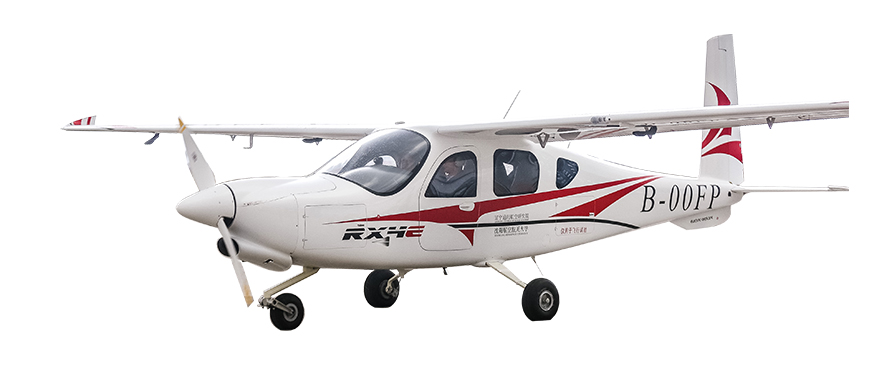

RX4E four seat electric aircraft

Four seat electric aircraft

The world's first four seat electric aircraft to apply for airworthiness certification of CCAR-23 aircraft.

Applied in many fields

It can be widely used in pilot training, sightseeing, agriculture and forestry operations and other navigation fields.

Environmental protection

The aircraft has no fuel consumption, zero emission, no pollution, stable operation of electric propulsion system, low noise and environmental protection.
