RX1E-S

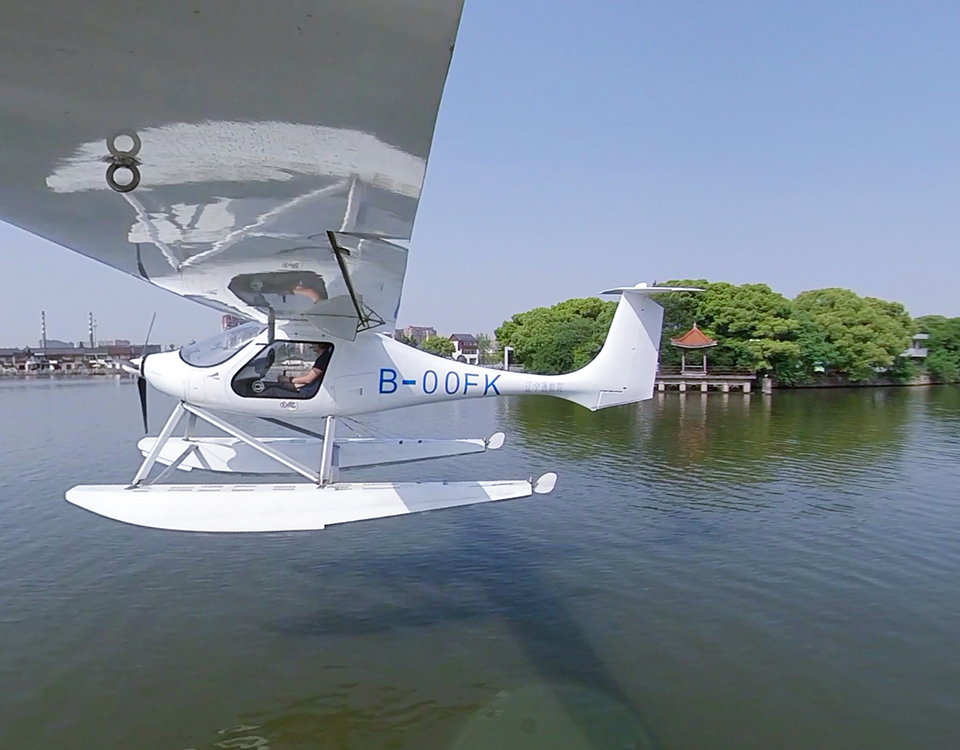

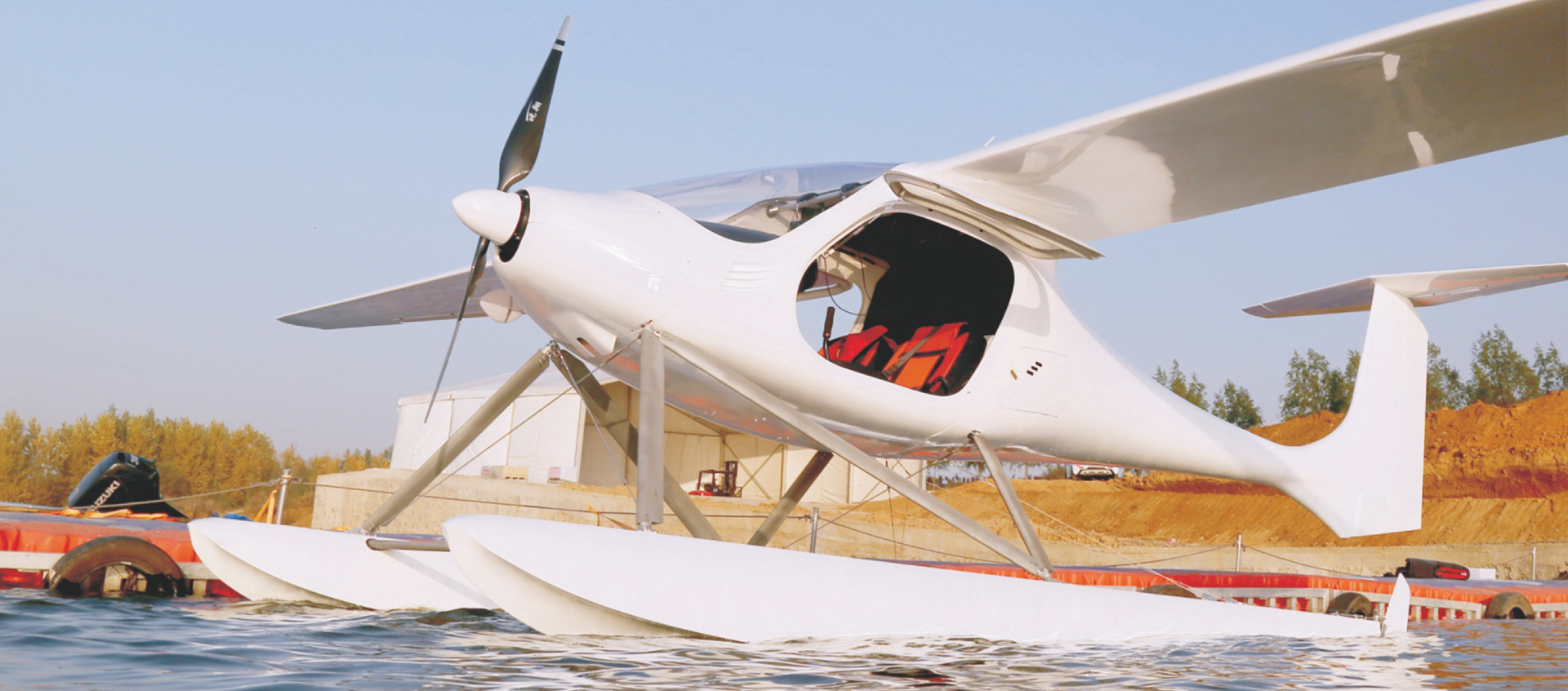

RX1E-S two seat electric seaplane has the characteristics of zero emission, low noise, low operating cost, safety and reliability, and is especially suitable for operating in scenic spots and eco-tourism areas with abundant water resources and high ecological protection standards. On December 31 2021, the RX1E-S two seat electric seaplane successfully obtained the type certificate.

Product introduction

RX1E-S is the world's first pontoon two-seat electric seaplane. On the basis of RX1E-A, it is developed by increasing the power of electric power system and replacing the double buoy type water landing device. The newly developed motor has a large power, the maximum power is 80kW, the carbon fiber three-blade propeller is used, the maximum speed is 2600 RPM, forming an efficient electric propulsion system. Double buoy support type water landing device, displacement of 1.2 cubic meters. The pontoon is made of carbon fiber composite material and is designed with multiple watertight compartments inside. The design scheme of the pontoon with low water resistance coefficient is obtained through aerodynamic calculation, hydrodynamic calculation and model hydrodynamic experiment. The bracket is made of water drop profile and aluminum pultrusion to minimize air resistance. Equipped with retractable rudder auxiliary control system to achieve flexible turning in narrow waters and dock adjustment.

Technical Parameters

Max take-off weight

650kg

Endurance time

1.5h

Empty weight of aircraft

500kg

Air-range

160km

Maximum speed

160km/h

Stall speed

82km/h

Cruising speed

110km/h

Battery capacity

50kWh

Maximum power

80kw

Take off run distance

235m

Service ceiling

3000m

Landing distance

207m

RX1E-S tow seat electric seaplane

Flexible take off and landing

Only suitable water area is needed, and the requirement of infrastructure is low.

Multi purpose and good accessibility

It can provide point-to-point flight and improve traffic accessibility between multiple waters and islands.

Easy to operate and learn

Aircraft system is highly integrated, easy to operate and learn.

Low operating costs

The direct operation cost of aircraft is low, the requirement of infrastructure is not high, and the use and maintenance cost is low.

The system is simple and reliable

The electric propulsion system is more integrated, simple, reliable and adaptable to the environment.

Excellent performance

Efficient aerodynamic design, high aspect ratio, good gliding performance and high lift drag ratio.

Environment friendly

The aircraft has no fuel consumption, zero emission, no pollution, stable operation of electric propulsion system, low noise and environmental protection.
